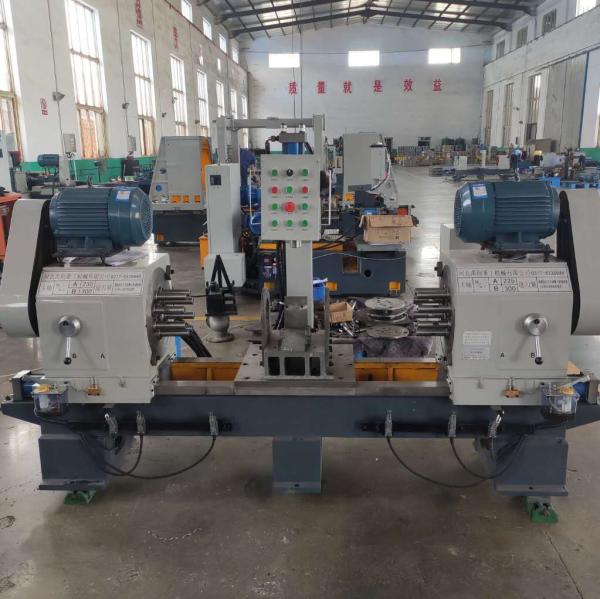

Double-sided multi-hole drilling machine for pumps and valves
The double-sided multi-hole drilling machine for pumps and valves can complete multi-station simultaneous processing of holes of different distribution types (regular distribution or irregular distribution) on various flanges, water pumps, pipe fittings, and fire hydrant connection surfaces, and the speed can be customized according to customer needs.
Main features
1. High processing efficiency: During the processing, the double-sided multi-hole drilling machine for pumps and valves uses a power head to synchronously complete the drilling of multiple holes on the flange at the same time, with a beat of less than 2 minutes, which can greatly improve the processing efficiency and reduce the number of clamping and positioning.
2. Reduce labor: Traditional drilling processing requires the use of molds, and one hole is processed at a time, which wastes time. The double-sided multi-hole drilling machine for pumps and valves can process multiple holes on the flange surface at the same time. One person can operate multiple machine tools at the same time, reducing labor costs and enhancing market competitiveness.
3. High uniformity of processing dimensions: Only one adjustment is required, and the drilling work can be easily completed by installing the workpiece.
4. Easy operation: Anyone can learn and master this machine tool without any processing experience.
Main components
The double-sided multi-hole drilling machine for pumps and valves is mainly composed of a bed, a power head, a feed slide, a tooling, etc., and is equipped with an independent electrical cabinet, a hydraulic station, a centralized lubrication device, a cooling device and an automatic chip removal device.
Applications
The double-sided multi-hole drilling machine for pumps and valves is suitable for all kinds of valves, water pumps, pipe fittings, and fire hydrants: it can process any valve body with two flange surfaces on the same axis, and can also process any side separately.
Specifications
| Project | Machine tool specifications | YC ll Z200HT | YC ll Z300HT | YC ll Z400HT | YC ll Z600HT |
| Technical specifications | Maximum drilling center distance (mm) | φ295 | φ410 | φ525 | φ770 |
| Maximum processing length (mm) | 600 | 800 | 800 | 1000 |
| Minimum processing length (mm) | 200 | 200 | 300 | 300 |
| Travel distance (mm) | 340 | 450 | 450 | 450 |
| Drill bit connection method (Morse taper shank) | Moshi 2# | Moshi 2# Moshi 3# | Moshi 2# Moshi 3# | Moshi 2# Moshi 3# |
| Machining accuracy | Position accuracy (mm) | ≤0.5 | ≤0.6 | ≤0.8 | ≤1 |
| Surface roughness | 12.5 | 12.5 | 12.5 | 12.5 |
| Main shaft drive | Transmission form (gear shifting) | 2-speed transmission | 2-speed transmission | 2-speed transmission | |
| Spindle speed range (r/min) | 225/286 | 197/223 | 159/231 | 11KWgear motor |
| Spindle motor model | YE2-132M-6-5.5KW | YE2-132M-6-5.5KW | YE2-132M-6-7.5KW | YE2-180L-8-11KW |
| Numerical Control System | PLC |
| Feed form | Hydraulic transmission |
| Machine tool appearance | Machine tool dimensions (length X width X height mm) | 2800X1000x1500 | 3200X1200X1700 | 3300X1200X1700 | 3400X1500X2000 |
| Machine weight (kg) | 1500 | 1800 | 2200 | 3000 |
