Power Tower Type Horizontal Machining Center 1500r/min 11KW

Name: Power Tower Type Horizontal Machining Center 1500rmin 11KW
Brand: Vicord
Price: 1 USD

Brand Name : Vicord

Model Number : YCWJ400

Certification : CE

Place of Origin : China

Payment Terms : L/C,T/T

Supply Ability : 500 units/year

Delivery Time : 60 days

Packaging Details : Wooden box or plastic film packaging

Turntable size : 320 x 320

Worktable size（length x width） : 450 x 450

Feed motor : Actuating motor

Rated speed : 1500r/min

Contact Now

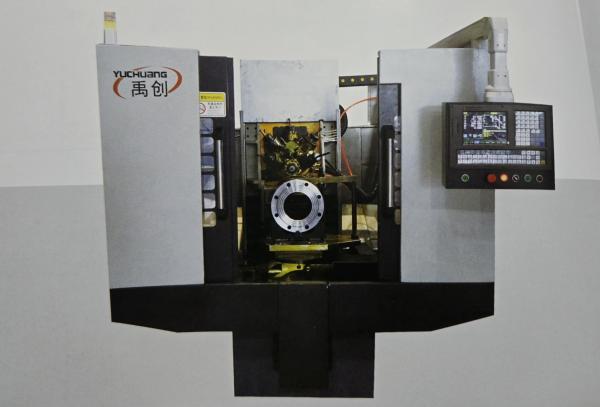

Power Tower Type Horizontal Machining Center

Main features

The machine tool adopts an electromechanical integration design, featuring strong rigidity and wear resistance of the ball screw linear guide. The slide table feed is controlled by numerical control, using ball screws, and it possesses characteristics such as aesthetic appearance, rational structure, easy operation, high machining accuracy, and excellent uniformity in machining dimensions.

Main component

The YCWJ series turret machining center mainly consists of horizontal slides, vertical slides, turret heads, rotary tables, fixtures, and other components. Through numerical control, it can achieve multiple machining processes such as milling end faces, drilling, back-drilling countersinking, and tapping in a single clamping.

Specifitions

Project	Machine tool specification	YCWJ400
Technical specifications	Worktable size(length x width)	450 x 450
	Turntable size	320 x 320
	Spindle number of turret head	6
	Connection mode of turret head spindle and cutter	ER40 circlip
	X-axis stroke	500mm
	Z-axis stroke	450mm
	Y-axis stroke	350mm
	Maximum drilling diameter	φ25
	Maximum tapping diameter	φ20
	Feed motor	Actuating motor
	Lubrication form of Machine tool	Volumetric automatic lubrication
Main motor	Total power of Machine tool	11KW
	Rated speed	1500r/min
	Rated power	4KW
Feed motor	X-axis motor	130SY-M-10
	Rated speed	1500r/min
	Rated power	1.6KW
	Rated output torque	10N.m
	Y-axis motor	130SY-M-7.7
	Rated speed	2000r/min
	Rated power	1.6KW
	Rated output torque	7.7N.m
	Motor model	130SY-M-20
	Rated speed	1500r/min
	Rated power	3KW
	Rated output torque	20N.m
Machine Appearance	Overall dimension of machine tool (length x width x height) (mm)	2000 x 1600 x 1800
Machine tool weight(kg)		2500
